Release of V2 of Doc Gen System: XPath in Content Controls

Update August 26, 2015: I have enhanced this document generation system, and published it as part of Open-Xml-PowerTools, which you can find at https://github.com/OfficeDev/Open-Xml-PowerTools. Going forward, I will be enhancing and maintaining that document generation system. Please feel free to clone / fork that repo, report issues on GitHub, and interact with me there.

Today I’m posting the release of version 2 of my simple document generation system.  In this example, you configure the document generation process by creating a template document that contains content controls.  You then enter XPath expressions in those content controls.  Those XPath expressions specify the data that the document generator pulls from the source data.  The source data is an XML document that contains data for each and every document that you generate.  The source XML document can also contain detail (children records) that populate tables in the generated document.  I detailed how the template document works in the post Generating Open XML WordprocessingML Documents using XPath Expressions in Content Controls.

This post is the 14th in a series of blog posts on generating Open XML documents. Here is the complete list: Generating Open XML WordprocessingML Documents Blog Post Series

Download: Generate Open XML WordprocessingML Documents using XPath Expressions in Content Controls

In my opinion, the use of XPath expressions in content controls is a superior approach to the one of entering C# code in content controls.  The code is cleaner and smaller (this first example is less than 240 lines of code).

I’ve recorded a short (2 minute) screen-cast that demonstrates this example in action.

Demonstrates the XPath-in-Content-Controls approach to document generation

So please download the example, try it out, and give me feedback.

Comments (42)

Update Data behind an embedded Chart in an Open XML WordprocessingML Document

I’ve been lurking over at OpenXMLDeveloper.org, answering questions.  A fairly involved question came up recently, which is: If you have an embedded chart in a word-processing document, how do you update the data behind the chart?  As it turns out, you have to update the data in two different places.  You have to update the data in the embedded spreadsheet, and you have to update cached values in the word-processing document.

I’ve written a post on OpenXMLDeveloper.org that contains example to update the data and update the cached values.  In addition, I recorded the following screencast, which walks through the process:

Walks through the process of updating the data behind a chart that is embedded in an Open XML WordprocessingML document.

Comments (3)

Replacing a Picture in a Picture Content Control in an Open XML WordprocessingML Document

You may have a picture content control where you want to replace the picture with a different picture.  This post shows the Open XML SDK V2 code that is necessary to find a picture content control with an alias of “MyPicture”.  It then finds the ImagePart, and then replaces the contents of the image part with a different image.


using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Text;
using DocumentFormat.OpenXml.Packaging;
using DocumentFormat.OpenXml.Wordprocessing;
using DocumentFormat.OpenXml.Drawing;

class Program
{
    static void Main(string[] args)
    {
        using (WordprocessingDocument doc =
            WordprocessingDocument.Open("Test1.docx", true))
        {
            SdtBlock cc = doc.MainDocumentPart.Document.Body.Descendants<SdtBlock>()
                .FirstOrDefault(c =>
                    {
                        SdtProperties p = c.Elements<SdtProperties>().FirstOrDefault();
                        if (p != null)
                        {
                            // Is it a picture content control?
                            SdtContentPicture pict =
                                p.Elements<SdtContentPicture>().FirstOrDefault();
                            // Get the alias.
                            SdtAlias a = p.Elements<SdtAlias>().FirstOrDefault();
                            if (pict != null && a.Val == "MyPicture")
                                return true;
                        }
                        return false;
                    });
            string embed = null;
            if (cc != null)
            {
                Drawing dr = cc.Descendants<Drawing>().FirstOrDefault();
                if (dr != null)
                {
                    Blip blip = dr.Descendants<Blip>().FirstOrDefault();
                    if (blip != null)
                        embed = blip.Embed;
                }
            }
            if (embed != null)
            {
                IdPartPair idpp = doc.MainDocumentPart.Parts
                    .Where(pa => pa.RelationshipId == embed).FirstOrDefault();
                if (idpp != null)
                {
                    ImagePart ip = (ImagePart)idpp.OpenXmlPart;
                    using (FileStream fileStream =
                        File.Open("After.jpg", FileMode.Open))
                        ip.FeedData(fileStream);
                    Console.WriteLine("done");
                }
            }
        }
    }
}

Comments (20)

Importing HTML that contains Numbering using altChunk

It is possible to import HTML that contains bullets or numbering using atlChunk.  Word 2007 or 2010 imports the numbered items and creates the appropriate WordprocessingML markup, as well as necessary numbering styles, to create a word-processing document that looks as close as possible to the original HTML.  The following example alters a document by adding an altChunk element at the end of the document.  The HTML that is imported contains an ordered list.


using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.IO;
using DocumentFormat.OpenXml.Packaging;
using System.Xml;
using System.Xml.Linq;

class Program
{
    static void Main(string[] args)
    {
        XNamespace w =
            "http://schemas.openxmlformats.org/wordprocessingml/2006/main";
        XNamespace r =
            "http://schemas.openxmlformats.org/officeDocument/2006/relationships";

        using (WordprocessingDocument myDoc =
            WordprocessingDocument.Open("Test3.docx", true))
        {
            string html =
@"<html>
<head/>
<body>
<h1>Html Heading</h1>
<ol>
<li>one.</li>
<li>two.</li>
<li>three.</li>
</ol>
</body>
</html>";
            string altChunkId = "AltChunkId1";
            MainDocumentPart mainPart = myDoc.MainDocumentPart;
            AlternativeFormatImportPart chunk = mainPart.AddAlternativeFormatImportPart(
                "application/xhtml+xml", altChunkId);
            using (Stream chunkStream = chunk.GetStream(FileMode.Create, FileAccess.Write))
            using (StreamWriter stringStream = new StreamWriter(chunkStream))
                stringStream.Write(html);
            XElement altChunk = new XElement(w + "altChunk",
                new XAttribute(r + "id", altChunkId)
            );
            XDocument mainDocumentXDoc = GetXDocument(myDoc);
            mainDocumentXDoc.Root
                .Element(w + "body")
                .Elements(w + "p")
                .Last()
                .AddAfterSelf(altChunk);
            SaveXDocument(myDoc, mainDocumentXDoc);
        }
    }

    private static void SaveXDocument(WordprocessingDocument myDoc,
        XDocument mainDocumentXDoc)
    {
        // Serialize the XDocument back into the part
        using (Stream str = myDoc.MainDocumentPart.GetStream(
            FileMode.Create, FileAccess.Write))
        using (XmlWriter xw = XmlWriter.Create(str))
            mainDocumentXDoc.Save(xw);
    }

    private static XDocument GetXDocument(WordprocessingDocument myDoc)
    {
        // Load the main document part into an XDocument
        XDocument mainDocumentXDoc;
        using (Stream str = myDoc.MainDocumentPart.GetStream())
        using (XmlReader xr = XmlReader.Create(str))
            mainDocumentXDoc = XDocument.Load(xr);
        return mainDocumentXDoc;
    }
}

Comments (4)

Generating Open XML WordprocessingML Documents using XPath Expressions in Content Controls

Over the last few days, I have completed a new prototype of an approach to Open XML WordprocessingML document generation. In this approach, I control the document generation process by placing XPath expressions in content controls. In contrast, the previous approach in this series of posts on document generation was controlled by writing C# code in content controls.

This post is the 13th in a series of blog posts on generating Open XML documents. Here is the complete list: Generating Open XML WordprocessingML Documents Blog Post Series

When I started down this path of discovery around document generation, I would not have predicted it, but the XPath-in-Content-Controls approach is, in my opinion, much superior to the C#-in-Content-Controls approach. Going forward, I am going to abandon the C#-in-Content-Controls approach, and focus on this approach using XPath. There are some very cool places that we can take this approach.

To compare and contrast, the C#-in-Content-Controls prototype consists of less than 400 lines of code. While it was not fully fleshed-out, and there remain many necessary refinements, I would expect that a finished version would be perhaps 3000 lines of code.

The XPath-in-Content-Controls prototype that I am introducing in this post is even smaller. It is less than 240 lines of code. It is simpler, more robust, and more amenable to polishing. I expect that the finished example, including integration into a document-level add-in for Word 2010 will be less than 1000 lines of code. I’ll be posting V1 of the prototype with the next post in this series.

Driven from an XML Document

One of the nice things about the C#-in-Content-Controls approach is that you could drive the document generation process from literally any data you could get your hands on from the .NET framework. In contrast, with this approach, there is one and only one form of data source, which is an XML document. And in this first prototype, I am restricting the data to an XML document that contains XML in no namespace. Allowing for namespaces in the XML means that I would need to provide mapping between namespaces and namespace prefixes, and that would get in the way of discussing the architecture and merits of this approach. I’ll deal with this in the future.

In the meantime, if you have XML that uses namespaces (or any other variety of data sources), your first task is to transform that data source to XML in no namespace.

The XML document should look something like this:

<Customers>
  <Customer>
    <CustomerID>1</CustomerID>
    <Name>Andrew</Name>
    <HighValueCustomer>True</HighValueCustomer>
    <Orders>
      <Order>
        <ProductDescription>Bike</ProductDescription>
        <Quantity>2</Quantity>
        <OrderDate>5/1/2002</OrderDate>
      </Order>
      <Order>
        <ProductDescription>Sleigh</ProductDescription>
        <Quantity>2</Quantity>
        <OrderDate>11/1/2000</OrderDate>
      </Order>
      <Order>
        <ProductDescription>Plane</ProductDescription>
        <Quantity>2</Quantity>
        <OrderDate>2/19/2000</OrderDate>
      </Order>
    </Orders>
  </Customer>
  <Customer>
    <CustomerID>2</CustomerID>
    <Name>Bob</Name>
    <HighValueCustomer>False</HighValueCustomer>
    <Orders>
      <Order>
        <ProductDescription>Boat</ProductDescription>
        <Quantity>2</Quantity>
        <OrderDate>8/9/2000</OrderDate>
      </Order>
      <Order>
        <ProductDescription>Boat</ProductDescription>
        <Quantity>4</Quantity>
        <OrderDate>3/25/2001</OrderDate>
      </Order>
      <Order>
        <ProductDescription>Bike</ProductDescription>
        <Quantity>1</Quantity>
        <OrderDate>6/5/2002</OrderDate>
      </Order>
    </Orders>
  </Customer>
  <Customer>
    <CustomerID>3</CustomerID>
    <Name>Celcin</Name>
    <HighValueCustomer>False</HighValueCustomer>
    <Orders>
      <Order>
        <ProductDescription>Bike</ProductDescription>
        <Quantity>2</Quantity>
        <OrderDate>2/24/2001</OrderDate>
      </Order>
      <Order>
        <ProductDescription>Boat</ProductDescription>
        <Quantity>4</Quantity>
        <OrderDate>5/6/2001</OrderDate>
      </Order>
    </Orders>
  </Customer>
</Customers>

While it isn’t required, it is more convenient to use a form where the Orders element is a child of the Customer element. The reason for this will become clear.

The XPath-in-Content-Controls Template Document

The next step in introducing this approach is to take a look at the template document that will drive document generation. While looking at this template, you can compare and contrast it to the template that contains C# code in content controls.

In this template document, I am going to borrow some nomenclature from XSLT. One of the attributes of the xsl:apply-templates element is the select attribute. If you place an XPath expression in the optional select attribute, XSLT will apply templates to the set of nodes that are selected by the XPath expression. The XPath expression is applied relative to the current context of the node that is currently being transformed by the sequence constructor. I am going to use a very similar approach in the template document. In effect, I am going to turn an Open XML WordprocessingML document into something that is analogous to an XSLT style sheet. Don’t worry if this is not immediately clear. It will be before the end of this blog post series. The point of this paragraph is that I’m going to use the term Select to indicate an XPath expression that will be evaluated, and the results of the evaluation will become the current context for other operations.

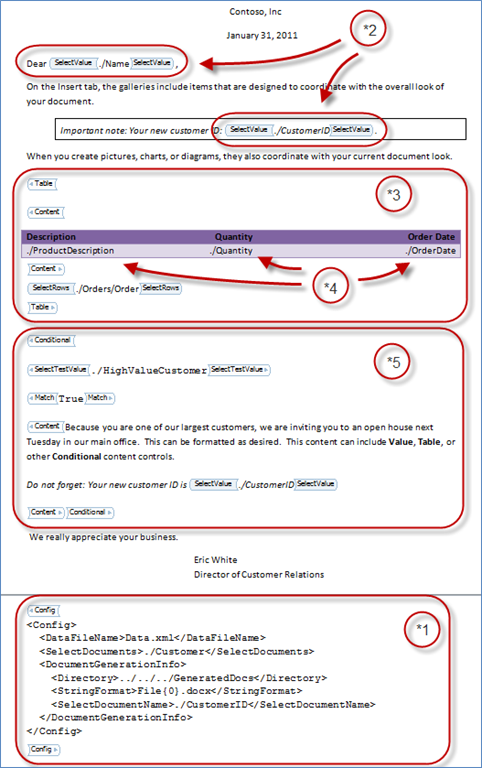

As usual, I am going to show content controls in design mode. Here is the template document, in its entirety. Of course, the circles and arrows are added by me to aid in explanation.


The Config Content Control (*1)

Starting at the bottom of the document, there is the Config content control, which contains XML, with a root element of Config.

The DataFileName element specifies the source XML document that contains the data that drives the document generation process.

The SelectDocuments element specifies an XPath expression that when evaluated against the root element of the document returns a collection of elements, each of which represent a document to be generated. In the case of the XML data file that I presented earlier, the XPath expression “./Customer” returns a collection of the Customer child elements of the root Customers element. Given that source data file, the document generation process will generate three documents.

The DocumentGenerationInfo element, and its child elements contains the necessary information to control the actual physical generation of the documents – the directory where the documents will be placed, a .NET StringFormat that works in conjunction with the SelectDocumentName XPath expression to assemble the generated FileName.

As an aside, I initially played around with nested content controls instead of having a single content control that contains XML. While this approach works, maintaining nested content controls using the Word 2007 or Word 2010 user interface is idiosyncratic. I could write a pretty detailed bug report around the maintainability of nested content controls. Maintaining the XML in a single content control is a more satisfactory approach.

The SelectValue Content Control (*2)

At the top of the template document, you can see the SelectValue content controls. As mentioned in the last section, the SelectDocuments XPath expression selects multiple Customer elements. While generating each document in turn, each Customer element becomes the current context. The SelectValue XPath expression is then evaluated in the context of each Customer element in turn. One of the circled SelectValue XPath expressions selects the Name child element of the Customer element. The other circled SelectValue XPath expression selects the CustomerID child element of the Customer element. In XML, the value of an element is defined to be the concatenated descendant text nodes (in other words, its textual content). The document generation engine retrieves the value of the selected element and replaces the content control with the value.

The Table Content Control (*3)

Just as the SelectValue content control is evaluated in the context of a Customer element, the SelectRows content control is also evaluated in the context of a Customer element. The difference is that SelectValue is expected to select a single element, whereas the SelectRows expression is expected to select a collection of elements, one for each row in the table. For customer #1 (Andrew), the SelectRows XPath expression selects three Customer elements. The XPath expressions (pointed to by *4) stored in the prototype row (the second row in the table) are evaluated in the context of each row selected by the SelectRows expression.

You also often see a similar pattern in properly written XSLT style sheets. One template is evaluated in the context of the root element, which selects a set of elements. An xsl:apply-templates causes an XPath expression to be evaluated in the context of each element selected by the first template. And an xsl:apply-templates in the sequence constructor of the second template causes an XPath expression to be evaluated in the context of each element selected by the second template, thereby causing a third set of templates to be applied.

Once you are familiar with this approach (sometimes called the ‘pull’ approach), you never write XSLT style sheets in any other way. Inexperienced XSLT developers sometimes try to write style sheets by using loops and calling templates explicitly, instead of letting the pattern matching power of XSLT to do the heavy lifting. This incorrect approach is sometimes called the ‘push’ approach.

To summarize, the SelectDocuments expression selects multiple elements, one for each document. The SelectRows expression, evaluated in the context of the elements selected by SelectDocuments, selects multiple elements, one for each row. The XPath expressions in the prototype row are evaluated in the context of the row elements selected by SelectRows.

The Conditional Content Control (*5)

The conditional content control works in exactly the same way as SelectValue and SelectRows. The SelectTestValue expression is evaluated in the context of the Customer element. The retrieved value is compared to the contents of the Match content control. If there is a match, the Conditional content control is replaced by the contents of the Content content control in the generated document.

Advantages of the XPath-in-Content-Controls Approach

There are several advantages to the XPath-in-Content-Controls approach over the C#-in-Content-Controls approach:

  • We eliminate the two-step process for generating documents. The program that processes the template (and processes all of the XPath expressions in the template) does the actual document generation. We don’t need to generate code, and then compile and run the generated code.
  • We can catch errors in the XPath expressions, and supply the template designer with good error messages that indicate the specific XPath expression that contains the error.
  • We eliminate all of the issues associated with typing C# code into content controls. When entering C# code in Word, of course there is no Intellisense. It could be difficult to catch errors in the C# code. The issues associated with replacing single or double quotes with smart quotes is significantly reduced. Note that the issues around quotes is not entirely eliminated. There are circumstances where the template designer may need to use single or double quotes in XPath expressions.

In the next post, I’ll show a video of this approach in action.

Future posts:

  • Show this approach at scale
  • Review XPath semantics of LINQ to XML
  • Examine the issues around namespaces in the source XML document
  • Show the process of changing the schema
  • Add robustness and error handling
  • Integrate as a document-level managed add-in for Word 2010.

This is fun!

Comments (18)

Changing the Schema for this Open XML Document Generation System

Flexibility in a document generation system is very important to its usability.  We all know how it works.  You’ve been commissioned by the marketing department to put together a mailing to 50,000 customers.  After doing the work of putting together the template document, the marketing department *will* come ask for changes to the data and to the template document.  In the following screen cast, I show the process of adjusting the XML data that drives the document generation system, as well as adjusting the template document to use that data.

This post is the 12th in a series of blog posts on generating Open XML documents. Here is the complete list: Generating Open XML WordprocessingML Documents Blog Post Series

Shows changing the schema and the template document.

There are lots of disadvantages to this approach of editing C# code in content controls in a Word document:

  • It requires a developer to put together the template document.
  • If you write C# code that doesn’t compile in a content control, you don’t see any errors until you try to compile the generated program.
  • There is no Intellisense when editing this code.  In a couple of places, I ended up first getting a snippet of code to work in Visual Studio, and then pasting that code into the content control.  This is far from ideal.
  • The code that generates C# code from the template document is not long – only about 390 lines of code (see ProcessTemplate.cs in the Zip file).  However, it is a bit gnarly, particularly the bits that make it so that you can have Value, Table, or Conditional content controls within a Conditional content control.  However, the C# code that you write inside the template document is not so complex – just the code to generate the code.

There are advantages too:

  • The code is directly associated and stored with the document.  This is called ‘lexical proximity’ – you don’t need to find code in another file somewhere, and you don’t need to keep code and the template document in sync.
  • You can pull data from *any* data source.  I could easily modify the template document to use OData or the Managed Client Object Model to pull data from a SharePoint list.  I could also write some ADO.NET code to pull data from any SQL database.

It is not clear that the advantages outweigh the disadvantages.  In the next post in this series, I’m going to limit the data source to XML, and use XPath in the content controls.

Comments (1)

Data Warehouse Book Recommendations

Some time ago, while still at Microsoft, I was involved in a small business intelligence project.  Many, many years ago, I was a database application developer, but times have changed.  I had to get up to speed on how to build and use a data warehouse in a hurry.  Fortunately, one of my best friends is a data warehouse developer for a large insurance company, and knew exactly which books to study.  Recently, I was asked for book recommendations, so I’m passing along the books that Bob McClellan recommended to me.

The Data Warehouse Toolkit: The Complete Guide to Dimensional Modeling

The Microsoft Data Warehouse Toolkit: With SQL Server 2008 R2 and the Microsoft Business Intelligence Toolset

Comments

Getting Started with Open XML PowerTools Markup Simplifier

On OpenXmlDeveloper.org, in one of the forums, there is a thread about how to clean Word proofing errors clutter out of an Open XML WordprocessingML document.  In PowerTools, in the HtmlConverter project, there is a class called MarkupSimplifier, which can remove proofing errors.  In addition, it can simplify WordprocessingML markup in a variety of ways, including removal of comments, content controls, and etc.  The blog post, Enabling Better Transformations by Simplifying Open XML WordprocessingML Markup describes MarkupSimplifier in more detail.

Here is a small screen-cast that shows the use of MarkupSimplifier.  In the screen-cast, I use Open XML Package Editor Power Tool for Visual Studio 2010.

Walks through the process of downloading and compiling a sample for MarkupSimplifier.

Here is the listing of the small program that uses MarkupSimplifier

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using OpenXmlPowerTools;
using DocumentFormat.OpenXml.Packaging;

class Program
{
    static void Main(string[] args)
    {
        using (WordprocessingDocument doc =
            WordprocessingDocument.Open("Test.docx", true))
        {
            SimplifyMarkupSettings settings = new SimplifyMarkupSettings
            {
                RemoveComments = true,
                RemoveContentControls = true,
                RemoveEndAndFootNotes = true,
                RemoveFieldCodes = false,
                RemoveLastRenderedPageBreak = true,
                RemovePermissions = true,
                RemoveProof = true,
                RemoveRsidInfo = true,
                RemoveSmartTags = true,
                RemoveSoftHyphens = true,
                ReplaceTabsWithSpaces = true,
            };
            MarkupSimplifier.SimplifyMarkup(doc, settings);
        }
    }
}

Comments (17)

Release of V1 of Simple DOCX Generation System

I have completed a preliminary version of this simple DOCX generation system, which you can download, unzip, and try.  You can find the zip file that contains all necessary bits here.

This post is the eleventh in a series of blog posts on generating Open XML documents. Here is the complete list: Generating Open XML WordprocessingML Documents Blog Post Series

The following 90 second screen-cast shows how to run the doc gen system after you download and unzip the zip file.

Demonstrates minimum number of steps to run the Open XML WordprocessingML document generator system

The following 2 1/2 minute video shows using the document generation system at scale.  I show generating 3000 documents in under a minute.

Comments (3)

Video of use of Document Generation Example

I have completed a rough first version of this document generation system that is driven by C# code that you write in content controls in a Word document.  As an intro, I’ve recorded a small screen-cast that shows the doc gen system in action.

This post is the tenth in a series of blog posts on generating Open XML documents. Here is the complete list: Generating Open XML WordprocessingML Documents Blog Post Series

Demonstrates an approach to Open XML WordprocessingML document generation that uses C# code in content controls.

V1 of the code that enables this approach to document generation is less than 400 lines of code, so this counts as simply an example program.  This shows the value of using functional programming, meta programming, and Open XML to reduce program size.

I have to note at this point – the example program contains almost no error handling.  If you mistype code in the content controls, you will encounter interesting compiler errors after loading the generated program.  In the long run, I expect to resolve these issues in an interesting way.  While at this point, I’m just playing around with document generation ideas, in the future, I want to build a system that is easy and convenient for non-developers to use.

I plan on posting this code sometime early next week, as well as a video that explains in more detail how the doc gen system works.

Comments (5)

« Previous entries Next Page » Next Page »
